These brackets are designed to allow custom mounting of the popular LS1 Coil Packs used in many standalone applications. While others are generally designed for V8s, our universal brackets can be used for V6/I6 cylinder applications, V8s or V12s, and I4s, and anything in between. The combination of aluminum supports and spacers allows for universal fitment with the stainless steel support rods. Measures approximately 12" across when assembled for the standard version, 9" for the compact 4 pack version.
Included in the standard package is as follows:
Two stainless rods & end nuts.
8 long spacers.
4 medium spacers.
4 short spacers.

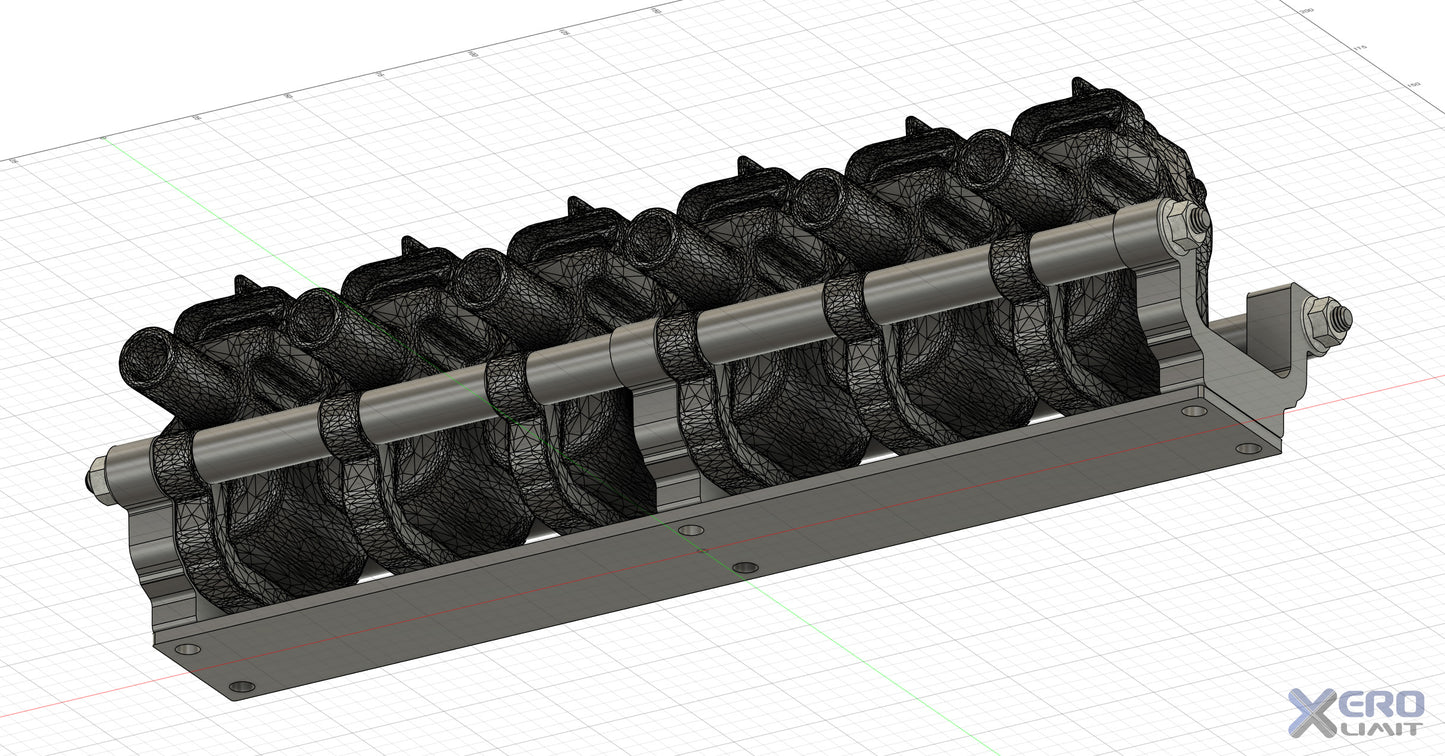

1 bottom plate for universal mounting (seen in CAD drawing).
3 support brackets.
This is everything you need to mount 4-6 coils on one rail. For a V8 or V12, you will need two of these.
We also have a "narrow 4 pack" option that includes what you need to mount 4 coils in a compact space, no bottom plate included but it can easily be bolted or welded on to 1.5" plate.
Made in the USA of 6061 aluminum, these brackets are precisely CNC cut and tumbled to a matte finish. The bottoms can be tapped with M6 or 1/4 hardware or they can be welded onto the plate directly for custom fitments.
